SlimLane
The SlimLane turnstile ensures secure and efficient access control, optimizing pedestrian flow while featuring an elegant design and proven reliability.
Equipped with high processing capacity and an exclusive detection system, the SlimLane guarantees accurate user tracking and prevents unauthorized access. Its modular design supports a wide range of configurations, obstacle heights, and passage widths to meet the specific requirements of any installation.
Reliability & Performance
- Robust design based on 50 years of experience and over 200 million daily users
- Long life cycle, low maintenance costs
- Fourth generation of security entrance lanes
Security
- High-performance electronic detection system based on a high density matrix of infrared beams preventing unauthorized use
- Fast double swing doors for immediate lane closure
- Electromechanical locking to withstand forced entry attempts
- Audio and visual signals to indicate unauthorized usage
Safety
- UL 2593 certified for maximum user protection
- Dynamic, electronic user protection based on traffic direction
- ‘EGRESS’ operating mode meets the highest fire safety standards
- Design to prevent finger entrapment and other impacts
- Precision controlled tempered glass obstacles
- In the event of power outage, the obstacles will open automatically with the battery backup
Aesthetics
- Transparent and elegant design
- Streamlined forms and glass obstacles
- Minimal footprint for maximum throughput
- Top quality assembly and finish
- Aesthetic and functional pictograms
MODULARITY
Models

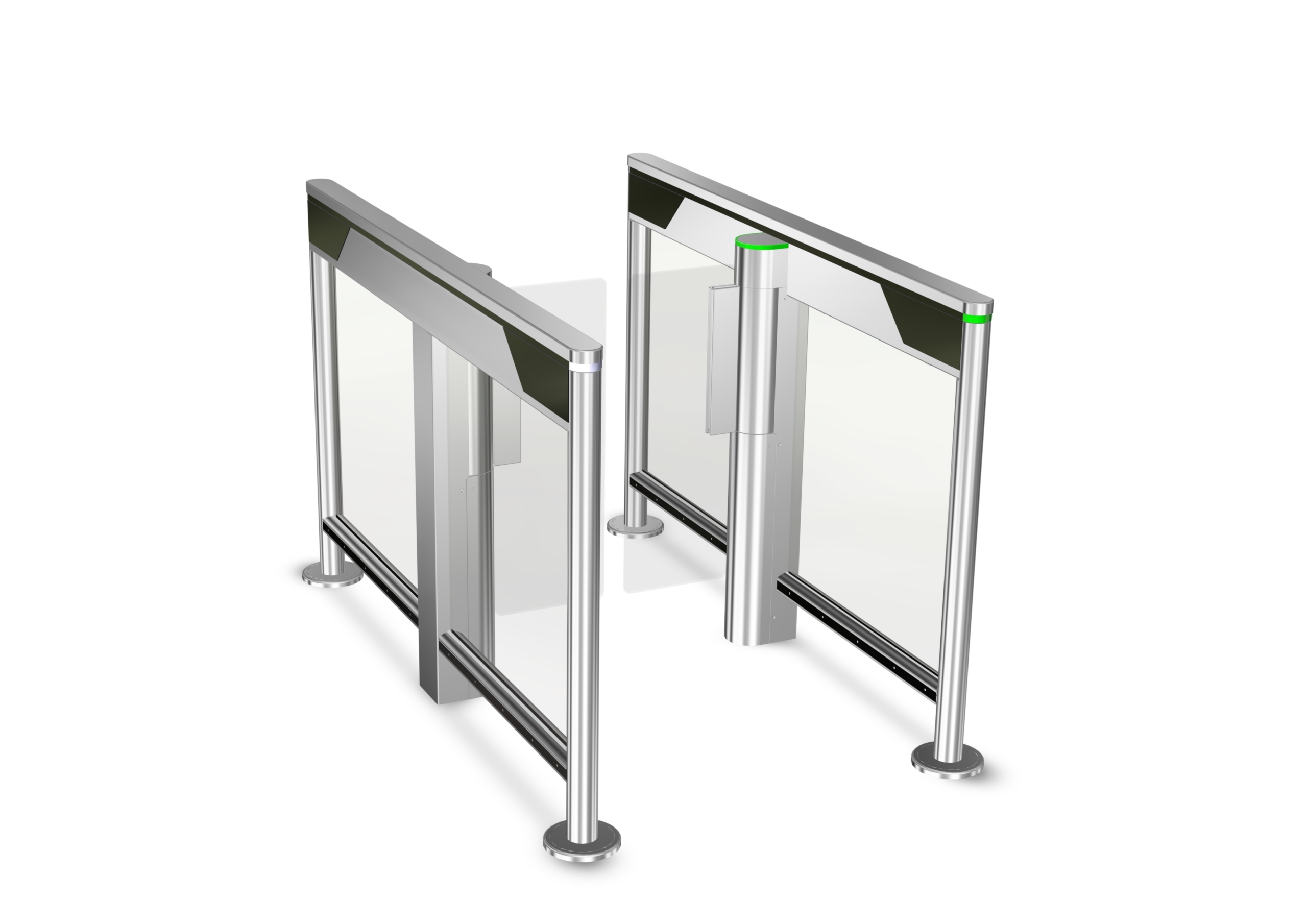

- The SLIMLANE 940: optimized balance between throughput and compact footprint

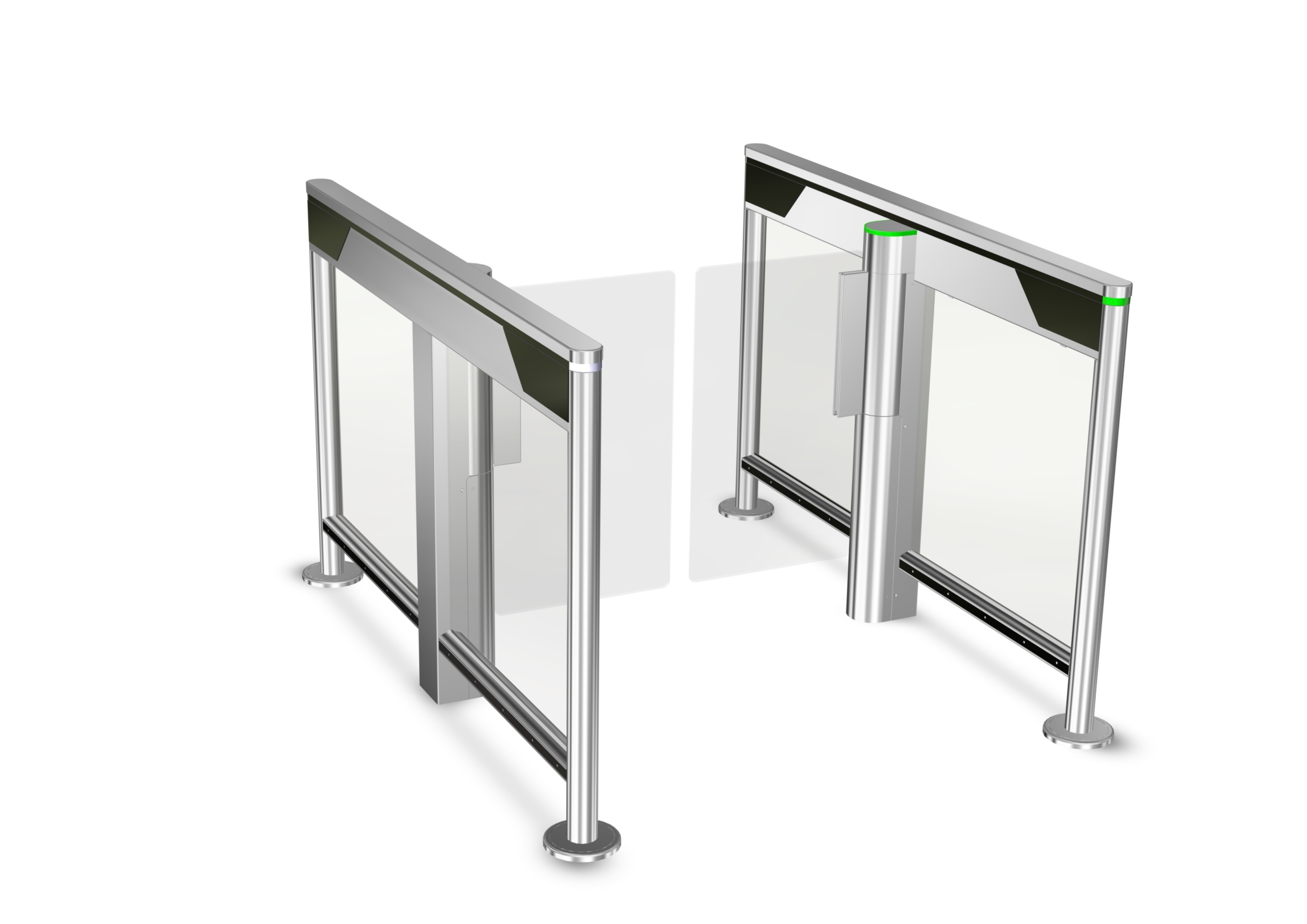

- The SLIMLANE 950: wider walkway for reduced mobility or service personnel users within a minimal footprint

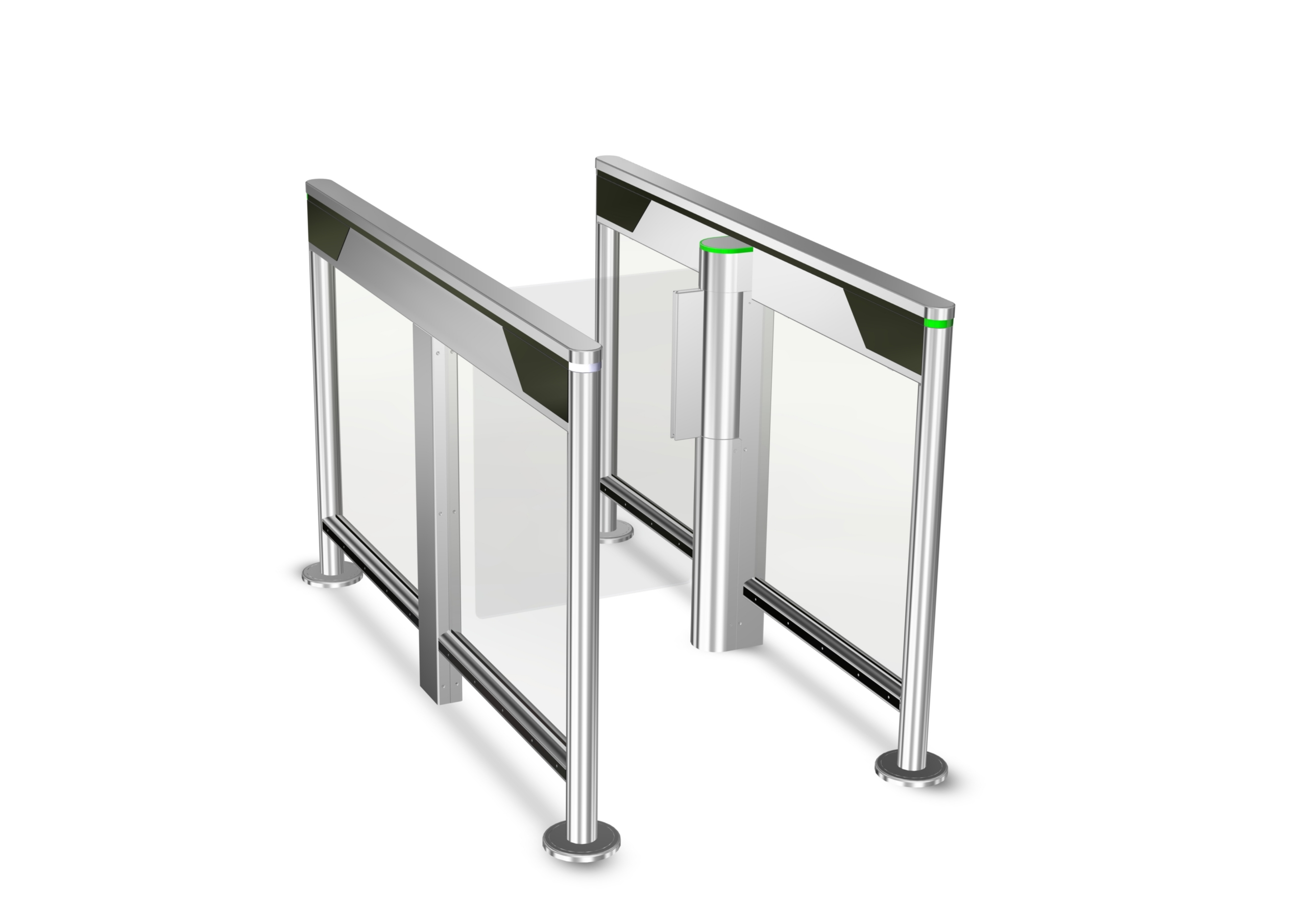

- The SLIMLANE 944: possibility of high throughput with a minimized footprint
- The SLIMLANE 940SC / 950SC: compact design that maximizes available space while maintaining security level
- The SLIMLANE EP: extended post adds space to integrate multiple peripherals including larger biometric readers
- The SLIMLANE EPR: sleek rounded extended post also provides space to integrate multiple peripherals
- The SLIMLANE NK: imposing housing provides additional space to integrate a variety of peripherals
Dual or Single Swinging Obstacles
- Standard Obstacle Heights: 35 7/16” /39” / 47” / 59” / 67” / 72”
- Passage widths: 23” / 36” /44”
- Custom heights and widths available
FEATURES
- UL 2593 listed to ensure maximum user safety
- Fast opening/closing of swing barriers (< 1 sec.)
- Precise pictograms for intuitive use
- Highly reliable products with 10 Million MCBF (Mean Cycles Between Failures)
- Exceptional build quality and refined aesthetics
- Flexible, customizable solutions for every environment
SECURITY AND SAFETY
- High-performance detection system (all obstacle heights)
- Electromagnetic brake to withstand forced entry attempts
- In the event of a power outage, the barriers will open toward the exit direction and remain open until power is restored
- EGRESS operating mode meets the highest fire safety standards, opens with a simple push
TECHNOLOGY & INTEGRATION
The cabinet is designed to seamlessly integrate a wide variety of authentication solutions, including RFID, QR and barcode readers, as well as biometric identification devices like facial recognition.
Applications:
- Banks and insurance companies
- Government buildings and institutions
- Office buildings, head offices, administrative sites
- Schools, universities and colleges
- Airports
- Etc.
DOWNLOADS
SLIMLANE 944 / 944SC
