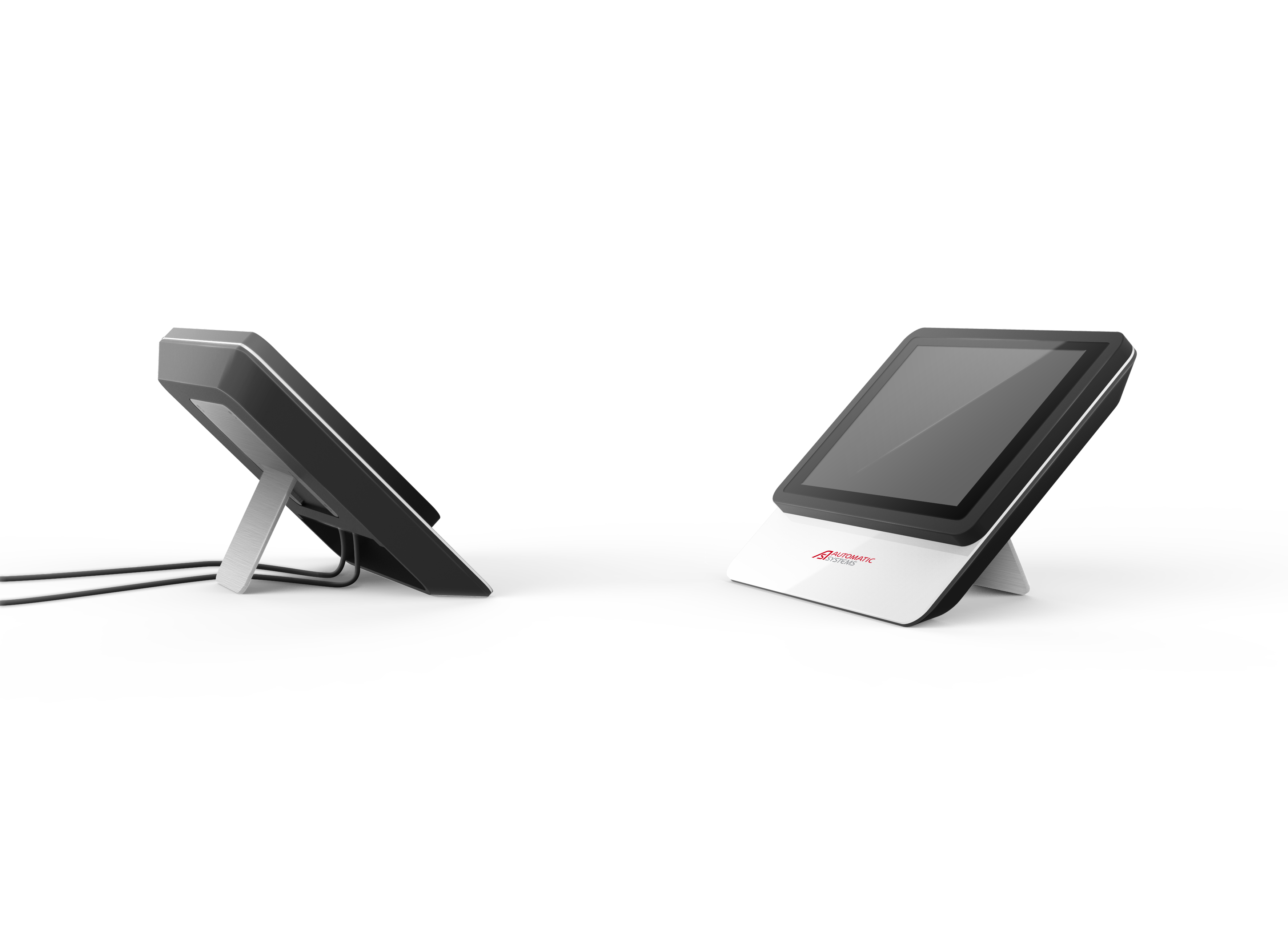

Smart Touch Control Panel
The Smart Touch is a simple yet elegant solution for managing one or two access control areas remotely, via an Ethernet network.
The 10″ touchscreen, equipped with an Android™ operating system and the Smart Touch application, offers several viewing options in order to provide you with a clear image of your facility.
Main benefits :
- Easily add or remove equipment
- Can change operating mode in both entry or exit directions of passage (free, controlled or locked)
- Ability to grant one or more passage authorizations to a specific lane
- Multiple language operating modes available
- Compatible with SmartLane, SlimLane and SlimLite optical barrier turnstiles, AccessLane swing gate and the TriLane turnstiles.
- Activation of evacuation mode
- Display of alarms and technical faults
|
Max number of lanes managed |
Up to 2 arrays of 10 lanes per array |
|
Type of equipment managed |
SmartLane SlimLane SlimLite TriLane AccessLane |
|
Controller/gate interface |
Ethernet |
|
Program languages |
English / French / Spanish |
|
Input power |
Single phase 120 VAC, 60 Hz |
|
Operating temperature |
50°F to 95°F (0°C to 35°C) |
| Display |
20″ Touch Screen |
|
Communication Interface |
Ethernet |
Visualization
- 1 or 2 entrances
- Specific lane status
- Alarms (intrusion, fraud) and technical errors
- Operating modes (free, controlled, locked) for each lane
Control
- Management of visitor access (open for one or more visitors)
- Configuration of the operating modes (free, controlled, locked) according to user’s needs
- Emergency opening
