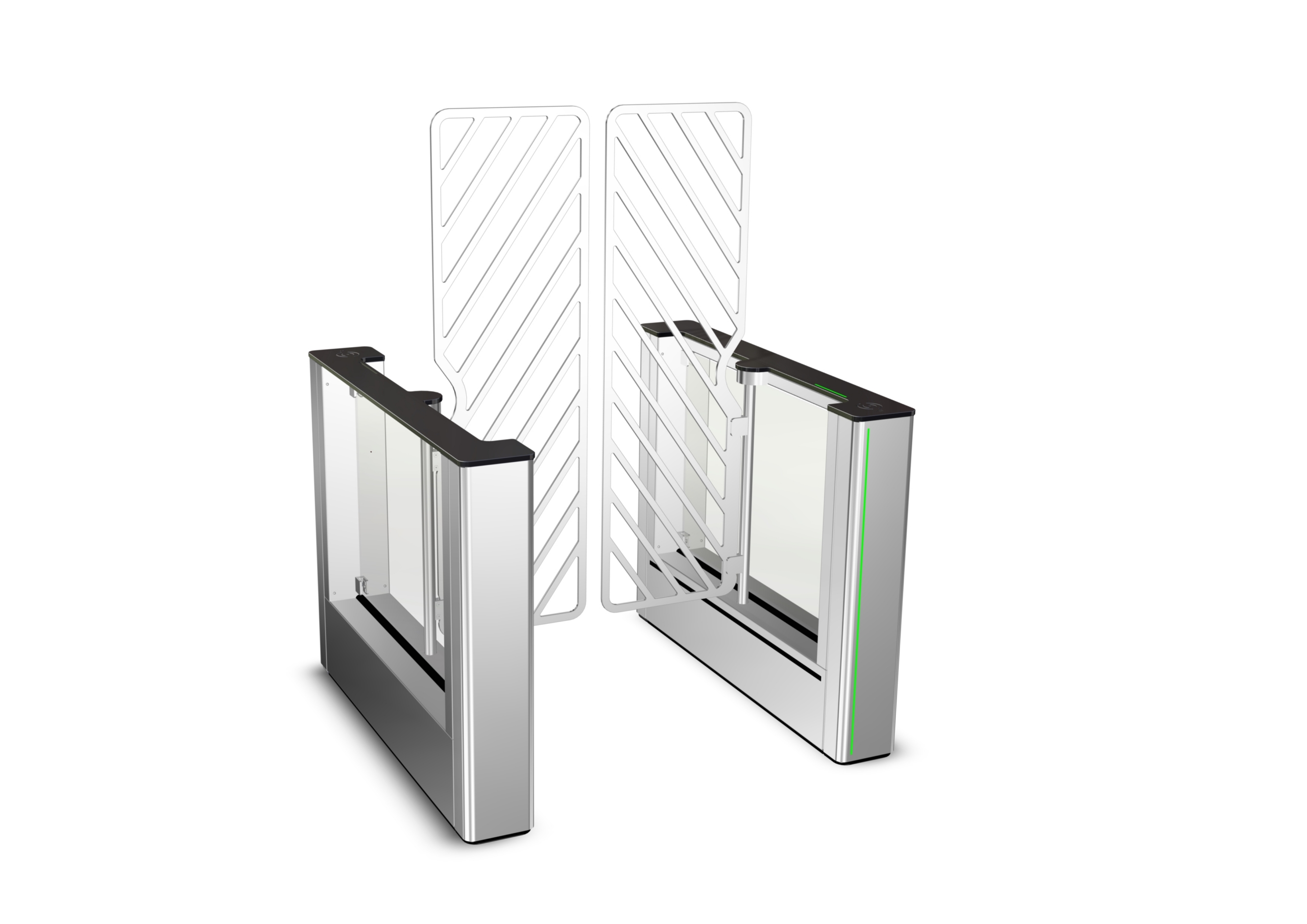

FirstLane PLUS
The FirstLane PLUS swing obstacle turnstile offers a modern and elegant design made to integrate perfectly within all exterior architectures. This speed gate is an extension of the FirstLane product offering, providing a reliable level of security. Its high processing capacity and exclusive detection system ensures precise user tracking.
The FirstLane PLUS outdoor model comes with IP44 certification and aerodynamic obstacles, that were designed for wind-resistance. It is able to operate in temperatures ranging from +14°F to +122°F (-10°C to +50°C).
RELIABILITY
- Steel frame
- RoHS anti-Corrosion zinc plating treatment
- AISI 304L stainless steel side panels
- 5/16” (8 mm) thick steel obstacles
- Clear 5/16″ (8 mm) thick tempered glass side obstacles
- Varnished electronic cards for protection from humidity
AESTHETICS
- Modern and elegant design
- Top cover with status lights for intuitive usage

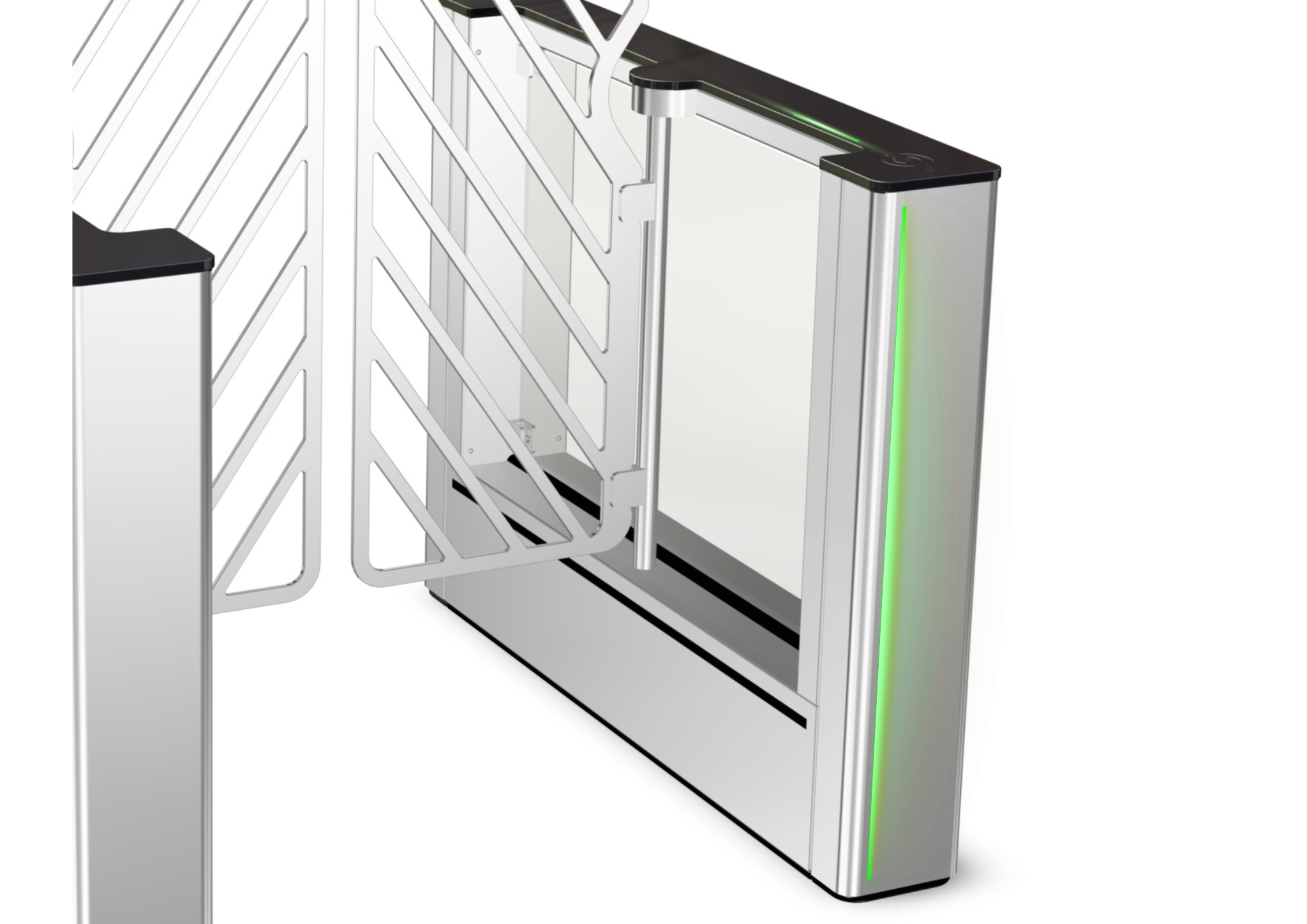

- DYNAMIC LIGHTING
- Perfectly suited to any exterior perimeter security application
USER EXPERIENCE
- FUNCTION PICTOGRAMS for intuitive use
- High throughput with its 0.7 seconds opening/closing time
- Obstacles swing in the direction of passage (entry / exit)
- Two standard passage widths available: 24 3/16” and 36″ for reduced mobility users
SAFETY
- Designed for optimal user safety respecting UL2593 requirements, including finger entrapment prevention
- Sensors monitoring the obstacles’ position
- Electro-mechanical drive units that include:
- Controller for progressive accelerations and decelerations of the obstacles
- Geared electromagnetic brake for locking of obstacles in the event of forced entry attempts
SECURITY
- Proprietary DIRAS detection system
- High-density matrix of infrared beams follows users’ progression through the lane
- Dynamic and predictive algorithms ensuring fraud detection preventing tailgating and piggybacking
- The cabinet allows easy integration of authentication technologies such as:
- RFID, QR Code and barcode readers
- Biometric devices
